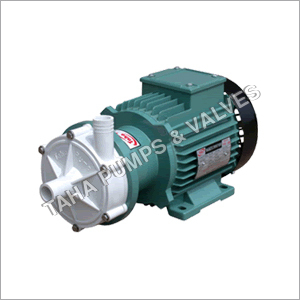

Seal Less Magnetic Drive Pumps

Get a Price/Quote

Seal Less Magnetic Drive Pumps Specification

Theory
Magnetic Drive Pump

Flow Rate
Up to 100 LPM

Max Suction
Up to 3 meters

Control System
Manual/Automatic

Head Size
Up to 15 m

Discharge Pressure
Up to 1.6 MPa

Noise Level
Low Noise (<70 dB)

Frequency
50/60 Hz

Inlet/Outlet
Threaded/Flanged, custom sizes available

Mounting Type
Foot Mounted

Speed
2800 RPM

Working Temperature
Up to 120C

Material
PP, PVDF, SS316, GFRPP

Structure
Centrifugal Magnetic Drive

Power
0.25 to 5 HP

Standard
ASME, ISO

Fuel Type
Electric

Pressure
Max 1.6 MPa

Usage
Chemical Transfer, Acid Handling, Laboratory, OEM Applications

Application
Chemical Industries, Pharmaceuticals, Electroplating, Effluent Treatment

Suction Type
Horizontal Suction

Seals Type
Seal less (Magnetic Coupling)

Pump Type
Seal Less Magnetic Drive Pump

Capacity
Up to 6 m/h

About Seal Less Magnetic Drive Pumps

Seal Less Magnetic Drive Pumps

Backed by rich industry experience and knowledge, we have been able to manufacture, export and supply a broad range of Seal Less Magnetic Drive Pumps. These pumps are manufactured by our skilled professionals using first class raw material with the help of advanced technology as per the set industry norms. The offered pumps are used for handling corrosive material, acids, kerosene, electroplating chemicals, dyes, solvents, petrol, food syrups, etc. Further, these Seal Less Magnetic Drive Pumps are widely used in chemical plants, textile dyeing houses, electroplating plants, pharmaceutical, food processing and other industries.

Key Features:

Longer service life
Robust construction
Corrosion resistance
High performance

Series PMD (Seal Less Magnetic Drive Pumps)

These Series PMD (Seal Less Magnetic Drive Pumps) pumps are designed to provide 100 % leak-proof performance with no shaft sealing. These pumps are developed using high-end magnetic drive arrangement to ensure to rotate the impeller. They are ideal for handling and managing a range of corrosive chemicals, solvents, petrol, acids, electroplating chemicals, dyes, kerosene, pharmaceutical, food syrups, etc. They are widely used in chemical plants, pharmaceutical, electroplating plants, textile dyeing houses, food and other sectors. Std. monoblock pumps are designed with Glass Filled PP material as well as TEFC (Totally Enclosed, Fan-Cooled) Non Flameproof motor. In addition, they are available with options of SS 316 and PVDF construction having Flame Proof motors.

Specifications:

At 2900 RPM		Max, Temp. PP - 80o C, SS316 - 250o C
Pump Model	HP		Size	Max. Capa. LMP	Max. Head Mtrs.
PMD-15	0.12		14 X 14	15	2.5
PMD-30	0.16		18 X 18	30	4
PMD-50	0.25		20 X 20	50	5
PMD-85	0.50		26 X 26	85	9
PMD-125	0.75		26 X 26	125	12
PMD-170	1		1"X 1"	170	14
PMD-300	1.5		1'" X 1'"	300	22

Innovative Magnetic Drive Technology

Our Seal Less Magnetic Drive Pumps employ robust magnetic coupling instead of traditional mechanical seals. This eliminates the risk of leakage and contamination, making them exceptionally reliable for transferring aggressive chemicals and acids. The non-contact drive means fewer components are exposed to wear, extending service life and reducing downtime in demanding environments.

Optimized for Chemical Handling

With compatibility for polypropylene, PVDF, SS316, and glass-filled polypropylene (GFRPP), these pumps ensure optimal chemical resistance and mechanical strength. Designed with horizontal suction and available in both threaded and flanged fittings, they can be customized to fit various piping configurations in chemical, pharmaceutical, and wastewater treatment industries.

Energy Efficient and Quiet Operation

Seal Less Magnetic Drive Pumps operate quietly with a noise level of less than 70 dB and deliver efficient performance at 2800 RPM. They support both manual and automated control systems and are suitable for continuous operation. Foot mounting ensures installation stability, making these pumps an excellent choice where low vibration and minimal noise levels are required.

FAQs of Seal Less Magnetic Drive Pumps:

Q: How does a Seal Less Magnetic Drive Pump operate without traditional shaft seals?

A: A Seal Less Magnetic Drive Pump uses magnetic coupling to transfer rotational energy from the motor to the pump impeller. The motors drive magnet and the impellers driven magnet interact through a static containment shell, eliminating the need for shaft seals. This design provides a leak-free solution for transferring hazardous or corrosive fluids.

Q: What materials are available, and how do I select the right one for my application?

A: These pumps are available in PP, PVDF, SS316, and GFRPP. For chemical compatibility and corrosion resistance, select PP or PVDF for general acids and corrosives, SS316 for high-pressure and metal compatibility, and GFRPP for enhanced strength. Consult your chemical compatibility charts or seek guidance for the best match based on your process fluid.

Q: When should I use a magnetic drive pump instead of a mechanical seal pump?

A: Magnetic drive pumps are ideal when leakage prevention is critical, such as in handling aggressive chemicals, acids, or hazardous fluids. Use them when downtime must be minimized, in applications where maintenance access is challenging, or in environments requiring contamination-free operation, such as labs and chemical process industries.

Q: Where can these pumps be installed and what are typical applications?

A: They are suitable for installation in chemical process lines, pharmaceutical plants, electroplating operations, laboratory settings, and effluent treatment units. The foot-mounted design simplifies placement on flat surfaces and integration into OEM machinery and chemical dosing systems.

Q: What is the maximum working temperature and pressure these pumps can handle?

A: Seal Less Magnetic Drive Pumps are engineered to operate at temperatures up to 120C and handle pressures as high as 1.6 MPa. This makes them suitable for a wide range of demanding chemical and industrial processes.

Q: How do I determine the appropriate size and capacity for my system?

A: Consider your required flow rate (up to 100 LPM or 6 m/h), head (up to 15 meters), and suction requirements (up to 3 meters). Evaluate your fluid type, operating temperature, and pressure to ensure material compatibility. Custom sizes are available to match specific project needs.

Q: What are the main benefits of using a Seal Less Magnetic Drive Pump?

A: Key advantages include leak prevention, minimal maintenance, long service life, low noise, and robust chemical resistance. Their seal-less design lowers environmental and workplace hazards, while efficient operation reduces long-term costs, making them a superior choice for modern fluid-handling systems.
